Products - Anchors

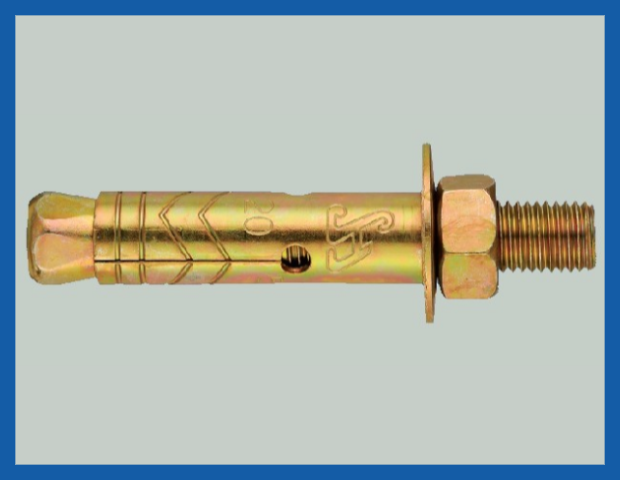

P.J. ANCHOR

Code	Size	Qty/Box	Hole Dia. Ø
E-0657-B	1/4 X 2"	200	8mm
E-0860-B	5/16 X 2-3/8"	100	10mm
E-0870-B	5/16 X 2-5/8"	100	10mm
E-08065-B	5/16 X 2-5/8"	100	11mm
E-0890-B	5/16 X 3-1/2"	200	10mm
E-1076-B	3/8 X 3"	100	12mm
E-1076-BW (ZP)	3/8 X 3"	100	12mm
H-1076-DG (HDG)	3/8 X 3"	100	12mm
E-10115-BS	3/8 X 4-1/2"	100	12mm
E-10115-BD (Double sleeves)	3/8 X 4-1/2"	100	12mm
E-1290-B	1/2 X 3-1/8"	50	16mm
E-12100-B	1/2 X 4"	50	16mm
E-12127-B	1/2 X 5"	50	16mm
E-16120-B	M16 X 120mm	25	20mm
E-16150-B	M16 X 150mm	25	20mm

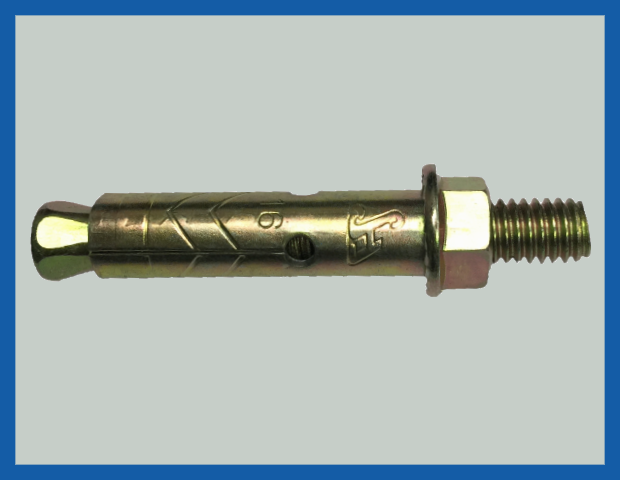

P.J. ANCHOR (FLANGE NUT)

Code	Size	Qty/Box	Hole Dia. Ø
F-0657-N	1/4 X 2"	200	8mm
F-0860-N	5/16 X 2-3/8"	100	10mm
F-0870-N	5/16 X 2-5/8"	100	10mm
F-08065-N	5/16 X 2-5/8"	100	11mm
F-1076-N	3/8 X 3"	100	12mm
F-12100-N	1/2 X 4"	50	16mm

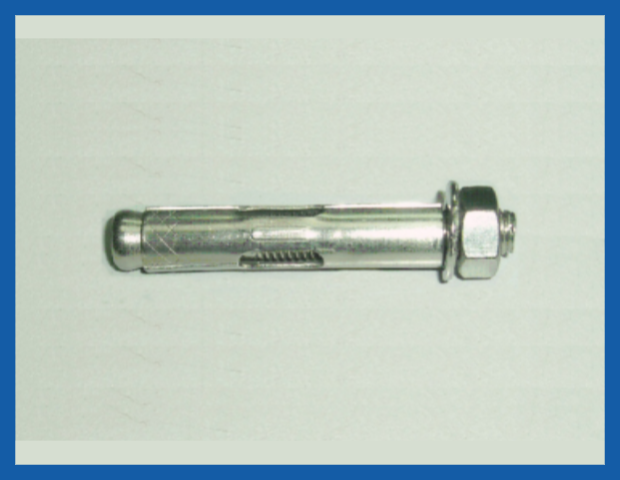

SLEEVE ANCHOR (STAINLESS STEEL 304)

Code	Size	Qty/Box	Hole Dia. Ø
SL M6 x 50	M6 X 50mm	100	8mm
SL M8 x 60	M8 X 60mm	110	10mm
SL M8 x 80	M8 X 80mm	50	10mm
SL M10 x 80	M10 X 80mm	30	12mm
SL M10 x 100	M10 X 100mm	30	12mm
SL M12 x 100	M12 x 100mm	15	16mm

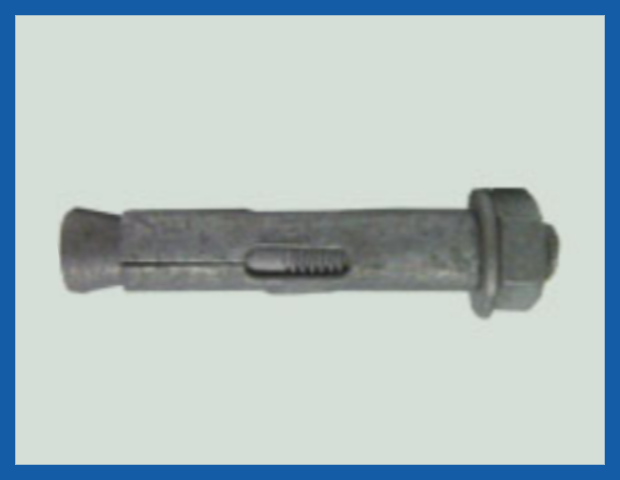

SLEEVE ANCHOR (HOT DIPPED GALVANIZED)

Code	Size	Qty/Box	Hole Dia. Ø
SL M8 x 65 HDG	M8 X 65mm	120	10mm
SL M10 x 70 HDG	M10 X 70mm	90	12mm
SL M12 x 100 HDG	M12 x 100mm	15	16mm
SL M16 x 120 HDG	M16 x 120mm	10	20mm

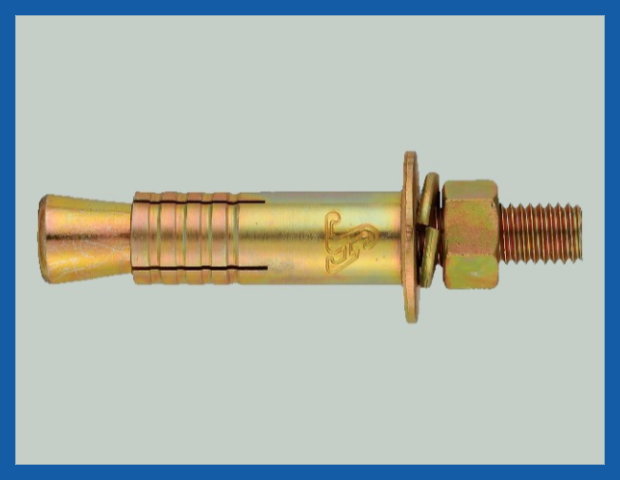

SET ANCHOR

Code	Size	Qty/Box	Hole Dia. Ø
S-0650-A	M6 X 50mm	200	10mm
S-0865-A	5/16" X 65mm	100	12mm
S-1080-A	M10 X 70mm	100	14mm
S-12100-A	M12 X 100mm	50	18mm
S-16120-A	M16 X 120mm	25	22mm
S-16150-A	M16 X 150mm	25	22mm
S-20160-A	M20 X 160mm	50	25mm

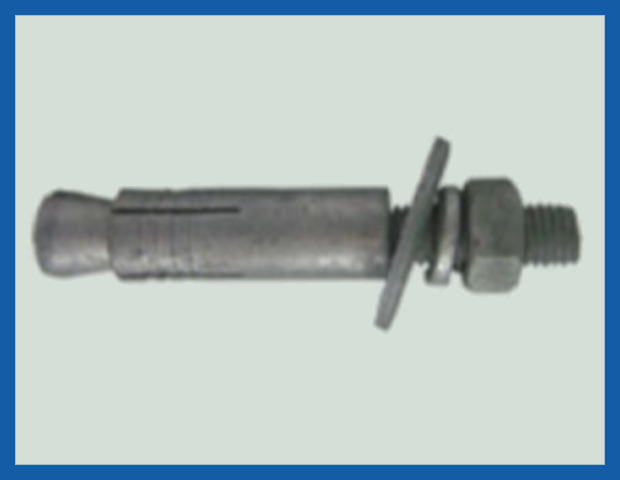

SET ANCHOR (HOT DIPPED GALVANIZED)

Code	Size	Qty/Box	Hole Dia. Ø
S-0650-HDG	M6 X 50mm	150	10mm
S-0865-HDG	M8 X 65mm	90	12mm
S-1080-HDG	M10 X 70mm	40	14mm
S-12100-HDG	M12 X 100mm	20	18mm
S-16120-HDG	M16 X 120mm	10	22mm
S-20160-HDG	M20 X 160mm	8	25mm

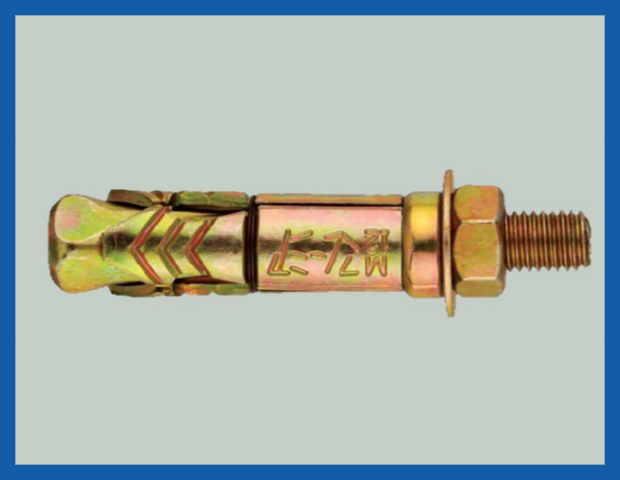

TY EXPANSION ANCHOR

Code	Size	Qty/Box	Hole Dia. Ø
TY/C1 M6 x 50	1/4 X 2"	50	12mm
TY/DA M8 x 65	M8 x 65mm	50	14mm
TY/D2 M8 x 75	M8 x 75mm	50	14mm
TY/E1 M10 x 75	M10 x 75mm	50	16mm
TY/E3 M10 x 120	M10 x 120mm	50	16mm
TY/E5 M10 x 140	M10 x 140mm	50	16mm
TY/G1 M12 x 100	M12 x 100mm	50	20mm
SHE865 (Hex Nut)	M8 x 65mm	50	14mm
SHE875 (Hex Nut)	M8 x 75mm	50	14mm
SHE865 (Flange Nut)	M8 x 65mm	50	14mm
SHE875 (Flange Nut)	M8 x 75mm	50	14mm

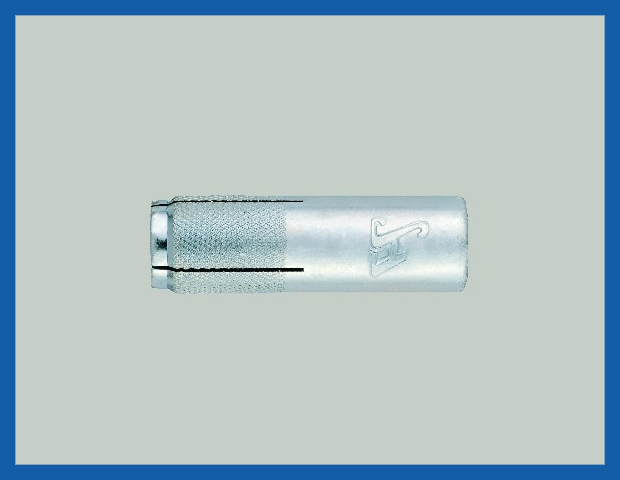

DROP IN ANCHOR

Code	Size	Qty/Box	Hole Dia. Ø
MD-0625-A	M6 X 25mm	100	8mm
MD-0830-A	M8 X 30mm	100	10mm
MD-1040-A	M10 X 40mm	100	12mm
MD-1250-A	M12 X 50mm	50	16mm
MD-1665-A	M16 X 65mm	25	20mm
MD-1980-A	M20 X 80mm	20	25mm
D-0625-A	1/4 X 1"	100	8mm
D-0830-A	5/16 X 1-3/16"	100	10mm
D-1040-A	3/8 X 1-1/2"	100	12mm
D-1250-A	1/2 X 2"	50	16mm
D-1665-A	5/8 X 2-9/16"	25	20mm
D-1980-A	3/4 X 3-1/8"	20	25mm

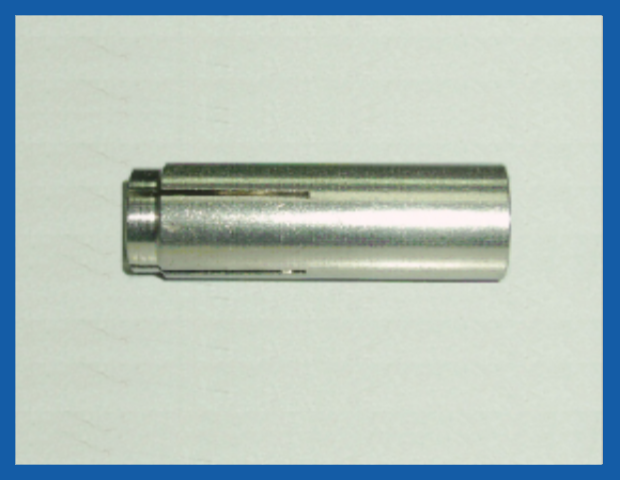

DROP IN ANCHOR (STAINLESS STEEL 304)

Code	Size	Qty/Box	Hole Dia. Ø
MD-1040-SS	M10 X 40mm	50	12mm
MD-1250-SS	M12 X 50mm	50	16mm
MD-1665-SS	M16 X 65mm	25	20mm
D-0625-SS	1/4" X 25mm	100	8mm
D-0830-SS	5/16" X 30mm	100	10mm
D-1040-SS	3/8" X 40mm	100	12mm
D-1250-SS	1/2" X 50mm	50	16mm

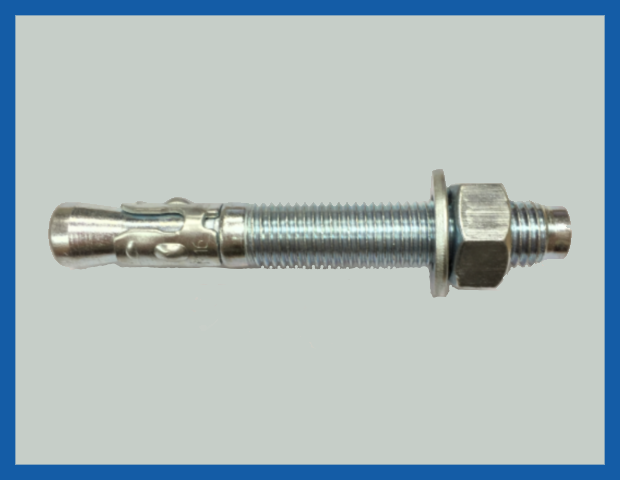

WEDGE ANCHOR

Code (Size)	Qty/Ctn	Hole Dia. Ø
WA 6 x 55	1800	6mm
WA 8 x 50	800	8mm
WA 8 x 65	1000	8mm
WA 10 x 80	560	10mm
WA 10 x 100	480	10mm
WA 12 x 80	360	12mm
WA 12 x 100	320	12mm
WA 12 x 140	240	12mm
WA 16 x 100	160	16mm
WA 16 x 125	160	16mm
WA 16 x 140	120	16mm
WA 16 x 180	120	16mm
WA 20 x 160	72	20mm

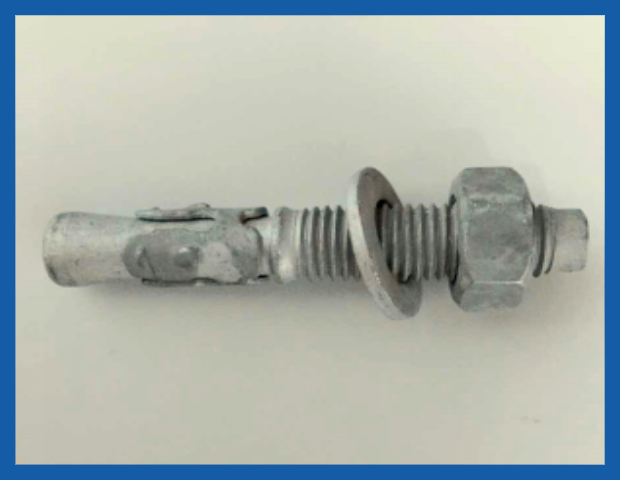

WEDGE ANCHOR (HOT DIPPED GALVANIZED)

Code (Size)	Qty/Ctn	Hole Dia. Ø
WA 6 x 55 HDG	1000	6mm
WA 8 x 50 HDG	800	8mm
WA 10 x 65 HDG	500	10mm
WA 12 x 80 HDG	250	12mm
WA 12 x 100 HDG	200	12mm
WA 16 x 125 HDG	120	16mm

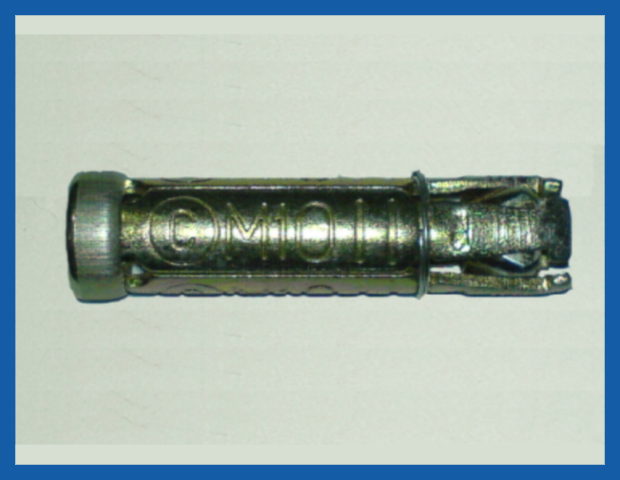

SHIELD ANCHOR WITHOUT HEX BOLT

Code	Size	Qty/Box	Hole Dia. Ø
SA-TYN M6 x 40	M6 X 40mm	200	10mm
SA-TYN M8 x 50	M8 X 50mm	100	14mm
SA-TYN M10 x 60	M10 X 60mm	50	16mm
SA-TYN M12 x 80	M12 X 80mm	25	20mm

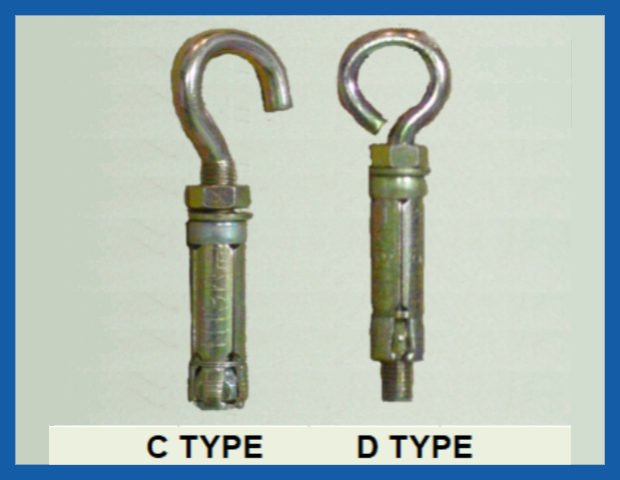

SHIELD ANCHOR WITH BOLT (C & D TYPES)

Code	Shield Size	Overall length	Qty/Box	Hole Dia. Ø
SA-C M6 x 40	M6 X 40mm	80mm	100	10mm
SA-C M8 x 50	M8 X 50mm	90mm	50	14mm
SA-C M10 x 60	M10 X 60mm	110mm	25	16mm
SA-C M12 x 80	M12 X 80mm	140mm	15	20mm
SA-C M16 x 100	M16 X 100mm	190mm	15	24mm
SA-D M6 x 40	M6 X 40mm	80mm	100	10mm
SA-D M8 x 50	M8 X 50mm	90mm	50	14mm
SA-D M10 x 60	M10 X 60mm	110mm	25	16mm
SA-D M12 x 80	M12 X 80mm	140mm	15	20mm

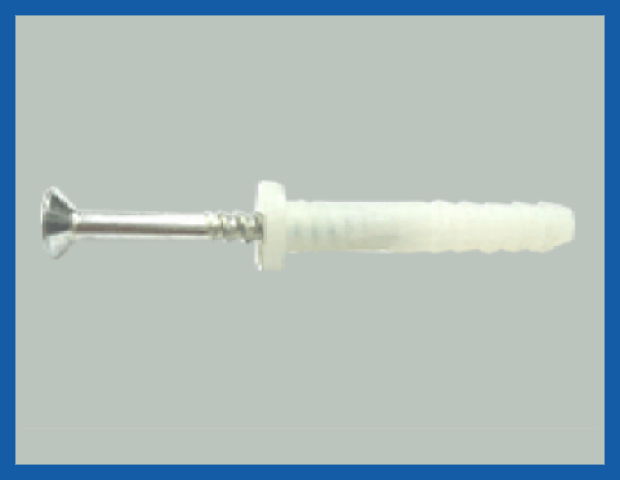

NYLON HAMMER FIXING

Code	Size	Qty/Ctn	Hole Dia. Ø
NHF 5 x 33	5 X 33mm	2000	5mm
NHF 6 x 40	6 X 40mm	2000	6mm
NHF 6 x 60	6 X 60mm	2000	6mm
NHF 8 x 50	8 X 50mm	1000	8mm
NHF 8 x 80	8 X 80mm	1000	8mm
NHF 8 x 100	8 X 100mm	1000	8mm

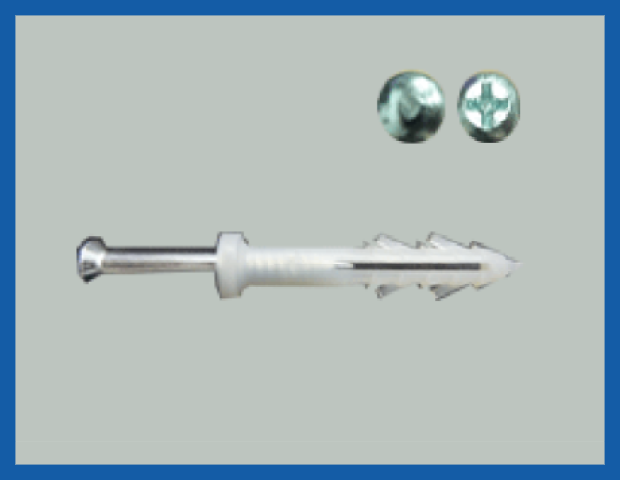

NYLON HAMMER FIXING (W) & (W+)

Code	Size	Qty/Ctn	Hole Dia. Ø
NHF 6 x 40 (W+)	6 X 40mm	4000	6mm
NHF 6 x 40 (W)	6 X 40mm	4000	6mm

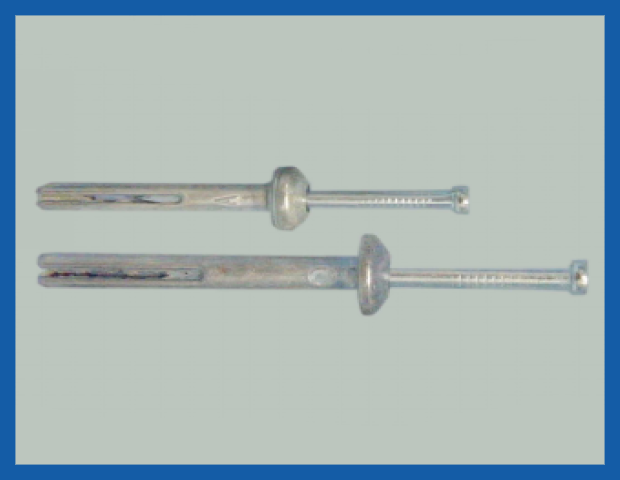

ZINC-ALLOY HAMMER DRIVE ANCHOR / HIT ANCHOR

Code	Size	Qty/Ctn	Hole Dia. Ø
DNA 630	6 X 30mm	2000	6mm
DNA 640	6 X 40mm	1500	6mm
DNA 650	6 X 50mm	1000	6mm

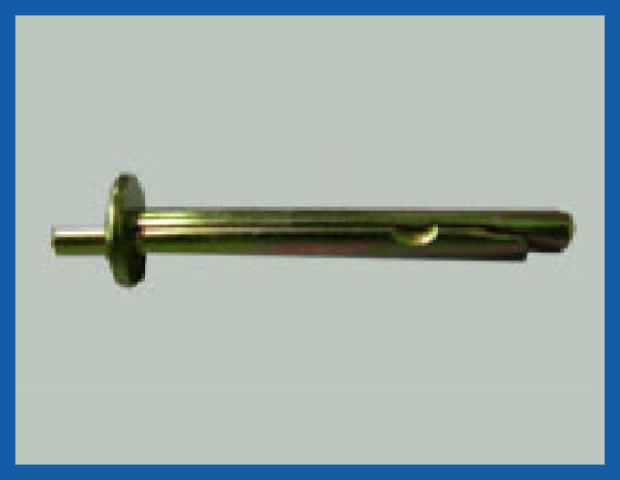

CEILING ANCHOR

Code	Size	Qty/Ctn	Hole Dia. Ø
CA 640	6 X 40mm	2000	6mm
CA 665	6 X 65mm	1000	6mm

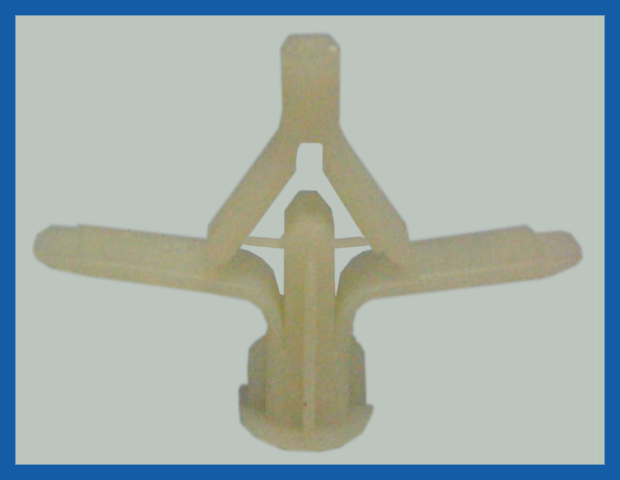

TOGGLE / BUTTERFLY PLUG

Code	Size	Qty/Ctn	Hole Dia. Ø
T-PLUG 10	10mm	1000	10mm

Our Products are tested by

SIRIM QAS International Sdn Bhd (410334-X)
No: 1, Persiaran Dato' Menteri, Section 2, P.O. Box 7035, 40700 Shah Alam, Selangor Darul Ehsan, Malaysia
Tel: 03-55445854 / 5856 Fax: 03-55445886
http://www.sirim-qas.com.my

CPG Laboratories Pte Ltd
115 Eunos Avenue 3, Singapore 409839
Tel: (65) 68483020 Fax: (65) 67465101
Business Reg No. 200105489C
